zoom 450ic vs walkera hm#83

aik-art18 · Post by **aik-art18** » 18 Jan 2008, 15:35

tolong dong review 2 heli ini!

Post by **Syafik** » 18 Jan 2008, 17:21

kalau bisa disertakan fotonya/gambarnya, speknya gimana?. Tolong dikasih data yang lengkap supaya kita 2 bisa kasih review... apakah Anda mau beli 2 produk ini?

ps. signaturenya kok kaco gitu ya...

aik-art18 · Post by **aik-art18** » 18 Jan 2008, 19:28

caranya mengupload photo gmn bos?
saya agak tertarik dengan ke-2 heli tsb, rencananya sih mo beli salah satu.
tapi klu zoom itu berupa kit+engine sedangkan hm83 rtf.

zoom 450ic :

Specification:

* Overall Length: 740mm (29.1")
* Overall Width: 130mm (5.1")
* Overall Height: 240mm (9.5")
* Main Rotor Diameter: 360mm (14.2")
* Tail Rotor Diameter: 55mm (2.2")
* Overall Weight: 1000g (35 oz)

Feature:

* Designed for 0.10 - 0.15 Engines
* High Performance CNC Head
* Auto-Rotation Capable
* 120cc Fuel Tank
* Engine Cooling System
* Aluminum Exhaust
* Belt Drive Tail System
* CCPM Control System
* Slightly larger than standard 400 sized helis. Makes it more stable but still very economical to run
* 120 Degree CCPM layout is both responsive and efficient
* Belt Driven tail is more durable than shaft driven designs
* Option to go either electric powered or gas powered

walkera hm83 :

Specification
1). Main Rotor Diameter: 900 mm
2). Tail Rotor Diameter: 175 mm
3). Overall Length: 820 mm
4). Engine Model: 15A
5). Battery: 4.8V 1300mAh Ni -MH
6). All-up Weight: 1100g (Without fuel)
7). Receiver: RX-702

. Transmitter: WK-0703
9). Gyro: WK-GX02
10).Rudder: weight 9.1g ; speed 0.12sec/60o(4.8V) ;torque 1.1kg/cm (4.8V) ; dimension 22.5X11.8X27mm
11).20g Servo: weight 22.6g ; speed 0.18sec/60o(4.8V) ; torque 2.0kg/cm (4.8V) ; dimension 28.5X13.5X29.6mm

Features
1). CCPM mixing control system and collective pitch structure make perfect 3D aerobatics like rolls, swoop, and inverted flights.
2). Metal rotor head, metal swashplate and metal tail fiber frame structure, built with legerity and novelty. The autorotation landing system, made of high quality one-way bearing, minimizes damage to your helicopter during unplanned landing.
3). Tail blades driven by belt provide easy adjustment, stable flight, and low noise.
4). 15A fuel engine of high performance is powerful.
5). WK-0703 LCD transmitter with adjustable pitch (PIT) parameter, rudder mixing, throttle curve & servo exponential make flight more stably and precis

Adrian · Post by **Adrian** » 18 Jan 2008, 19:36

caranya upload foto
tinggal ke www.photobucket.com > register > upload fotonya
kalo semua sudah, nanti di tiap gambar ada code imagenya, nah itu tinggal dicopy, dan paste pas mau nge post..... Beres

Joker · Post by **Joker** » 18 Jan 2008, 20:19

aik-art18 wrote:caranya mengupload photo gmn bos?
saya agak tertarik dengan ke-2 heli tsb, rencananya sih mo beli salah satu.
tapi klu zoom itu berupa kit+engine sedangkan hm83 rtf.

zoom 450ic :

Specification:

* Overall Length: 740mm (29.1")
* Overall Width: 130mm (5.1")
* Overall Height: 240mm (9.5")
* Main Rotor Diameter: 360mm (14.2")
* Tail Rotor Diameter: 55mm (2.2")
* Overall Weight: 1000g (35 oz)

Feature:

* Designed for 0.10 - 0.15 Engines
* High Performance CNC Head
* Auto-Rotation Capable
* 120cc Fuel Tank
* Engine Cooling System
* Aluminum Exhaust
* Belt Drive Tail System
* CCPM Control System
* Slightly larger than standard 400 sized helis. Makes it more stable but still very economical to run
* 120 Degree CCPM layout is both responsive and efficient
* Belt Driven tail is more durable than shaft driven designs
* Option to go either electric powered or gas powered

walkera hm83 :

Specification
1). Main Rotor Diameter: 900 mm
2). Tail Rotor Diameter: 175 mm
3). Overall Length: 820 mm
4). Engine Model: 15A
5). Battery: 4.8V 1300mAh Ni -MH
6). All-up Weight: 1100g (Without fuel)
7). Receiver: RX-702
. Transmitter: WK-0703
9). Gyro: WK-GX02
10).Rudder: weight 9.1g ; speed 0.12sec/60o(4.8V) ;torque 1.1kg/cm (4.8V) ; dimension 22.5X11.8X27mm
11).20g Servo: weight 22.6g ; speed 0.18sec/60o(4.8V) ; torque 2.0kg/cm (4.8V) ; dimension 28.5X13.5X29.6mm

Features
1). CCPM mixing control system and collective pitch structure make perfect 3D aerobatics like rolls, swoop, and inverted flights.
2). Metal rotor head, metal swashplate and metal tail fiber frame structure, built with legerity and novelty. The autorotation landing system, made of high quality one-way bearing, minimizes damage to your helicopter during unplanned landing.
3). Tail blades driven by belt provide easy adjustment, stable flight, and low noise.
4). 15A fuel engine of high performance is powerful.
5). WK-0703 LCD transmitter with adjustable pitch (PIT) parameter, rudder mixing, throttle curve & servo exponential make flight more stably and precis

waduh agak susah nih, secara kategorinya sejenis , secara keseluruhan....berbeda adalah yang satu rtf dan arf biasa nya nih arf lebih bisa melakukan advance konfigurasi apabila tx yang ada punya bisa melakukan konfigurasi lebih...

Sebetulnya Walkera 703 merupakan tipe baru dari walkera 701 yang masih analog.... Dan penjualan di Indonesia sangat jarang.... Yang pasti untuk distributor walkera di indonesia yang saya tau ada di yogya aeromodelling mungkin bisa tanya langsung kesana mas , Untuk kesedian barang dan part lainnya...

hemat nya masing masing pasti ada +/- , Jadi lebih baik cari heli yang gampang part after crash.

Jempol yang diasah supaya jago :bow:

Post by **Redblur** » 18 Jan 2008, 21:46

kata pemilik salah satu hobby shop sih Zoom hehehhe

karena walkera Gyro yg di sertakan kurang,TX dan RX walkera pun kurang(suka glitch tanpa sebab)

Joker · Post by **Joker** » 18 Jan 2008, 22:08

Redblur wrote:kata pemilik salah satu hobby shop sih Zoom hehehhe

karena walkera Gyro yg di sertakan kurang,TX dan RX walkera pun kurang(suka glitch tanpa sebab)

nah bener khan

jstnt · Post by **jstnt** » 19 Jan 2008, 01:25

Setuju dengan blur hehehehe, karena pernah ngalamin glitch tiba tiba pas pake walkera 36, sekarang walkernya tiggal pajangan aja, partnya susah sekaleeee

Adrian · Post by **Adrian** » 19 Jan 2008, 04:35

kalo antara 2 heli itu, saya nyaranin zoom deh.....
Partnya mudah dicari.... Kalo walkera partnya sudah mahal sulit dicari pula... Belum lagi kalo HSnya kehabisan, mesti nunggu beberapa bulan. Apalagi sekarang suka glitch

Joker · Post by **Joker** » 19 Jan 2008, 06:24

Adrian wrote:kalo antara 2 heli itu, saya nyaranin zoom deh.....
Partnya mudah dicari.... Kalo walkera partnya sudah mahal sulit dicari pula... Belum lagi kalo HSnya kehabisan, mesti nunggu beberapa bulan. Apalagi sekarang suka glitch

Jujur aja nih, saat ini saya menggunakan walkera 701 tx /rx pada belt cp , selama ini blom pernah sich merasa kan glicth ,....

walau settingan terbatas sekali karena analog,....seingat saya untuk walkera 703 udah digital jadi pasti ada peningkatan dech

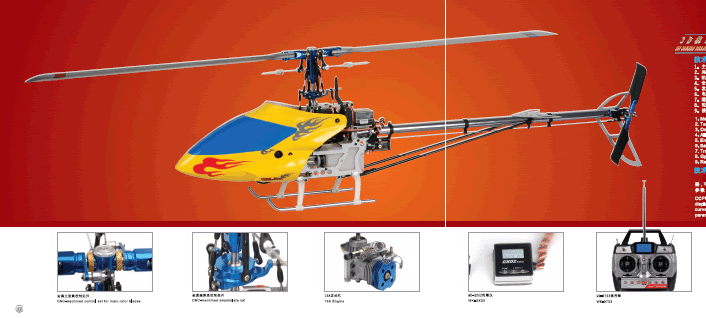

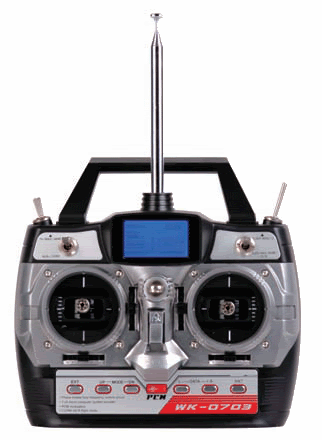

Itu gambaar nya 83 ama walkera 703.....koq bagus nya.......

Udah dech mas yang penting kalo suka ambil aja,... masalah after crash part dan lain lain kalo dach mantap ambil terus kita tunggu ceritanya...

yang jelas heli nya udah metal abis gyro sudah digital tuch.....pasti mesti nya udah mantap dech
