Phoenix Dragon

Post by **Wind Raider** » 29 Jan 2008, 12:46

Legend of the Phoenix and Dragon.

The phoenix is a mythical bird which consumed itself by fire every 500 years and a new young phoenix sprang from its ashes. Legend has it that the phoenix lands on nothing but the greatest treasures. It is the highest-ranked bird in China and represents beauty, good luck, the Empress, female energy, and the southern direction.
The dragon, a legendary reptilian monster, is deified in the Taoist religion and was the national emblem of the Chinese Empire. Among the Chinese people, the dragon is traditionally regarded as a symbol of creativity and good fortune, and represents the Emperor, male energy and the eastern direction. The combination of phoenix and dragon is similar to that of a yin/yang, symbolizing the union of opposites.

Post by **Wind Raider** » 29 Jan 2008, 12:51

Sorry .... salah kamar ya ???
Ehhh ndak ding .....

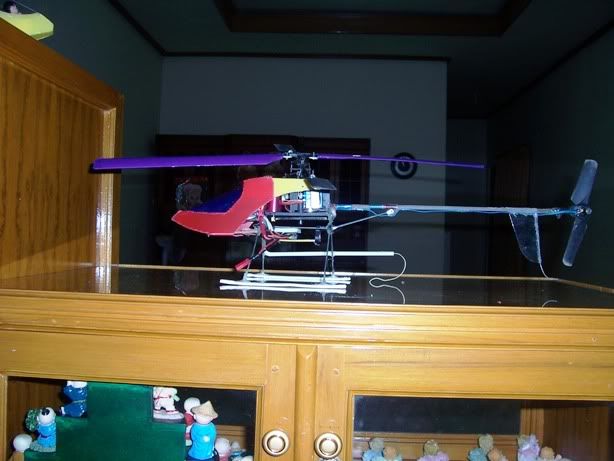

Introducing :

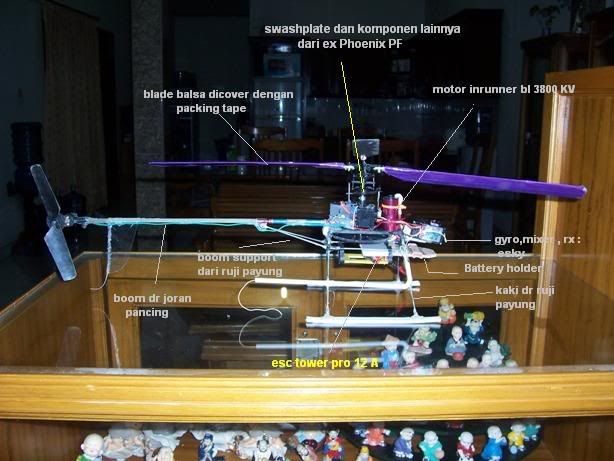

Dengan canopy yg berbentuk kepala naga dari coroplast , blade balsa homemade flat bottom dan komponen / mekanik ex heli pheonix ....
dengan ini saya namaken ini heli : Pheonix Dragon ...
Boom dari joran pancing ; boom support dari ruji sepeda
Landing skid campuran dari ruji sepeda , coroplast dan bambu .

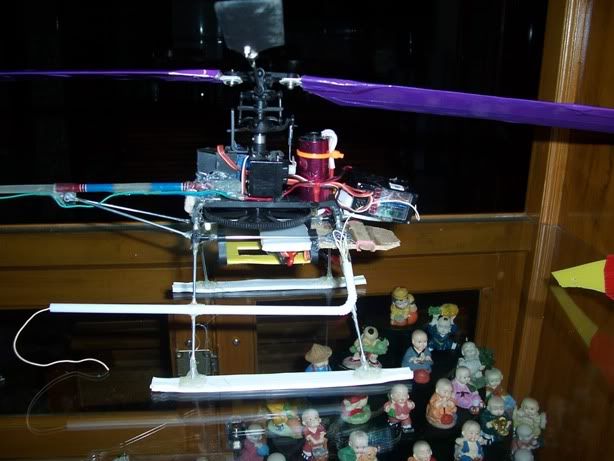

Take a look closer
Tak lupa pakai sedotan sebagai tempat tali antene

Gyro , mixer , rx ( 4 in 1 dari Esky )
Motor BL 3800 KV
bat = Lipo 800 mAh 2 cell
AUW kurang lebih 300 gram

Post by **Wind Raider** » 29 Jan 2008, 12:59

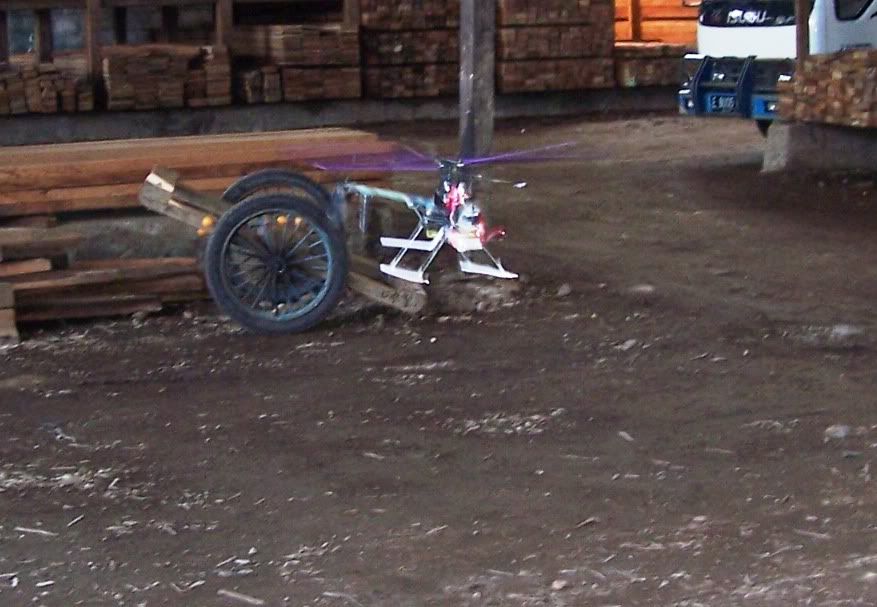

Test flight

hihihi lumayannnn ...

Post by **iwan21** » 29 Jan 2008, 13:49

pantesan enggak nongol2...rupanya lagi keracunan hely homemade hi hi hi hi hi...

Post by **justinus** » 29 Jan 2008, 13:50

Wah, terbang juga helinya. Lama2 makin tinggi.....

Post by **Syafik** » 29 Jan 2008, 13:54

hehehe.. kreatif banget bapak ini... helinya warna-warni

Gimana pak reviewnya? karakter terbang?

Post by **Wind Raider** » 29 Jan 2008, 14:54

@iwan21 : itu heli stock lama pak ... kasihan tinggal mekaniknya aja . Bodynya udah hancur ...
Jadi mau nggak mau dilakukan overhaul secara keseluruhan
Boom dibuat dari joran pancing biar kuat ; dijamin deh boom gak akan patah kecuali digergaji hehehe

@justinus : makin tinggi makin grogi heheh

@syafik : perasaan sih tenaganya lebih bagus . Tapi karena masih newbie ... terbangnya masih hovar hover aja .. itu pun kalau gak nabrak tembok ...

x wing · Post by **x wing** » 29 Jan 2008, 15:37

iwan21 wrote:pantesan enggak nongol2...rupanya lagi keracunan hely homemade hi hi hi hi hi...

xixixixixi memang heli kaya gini bikin gregetan pasti nya apa lagi udah uta' ati' sendiri , aku pernah merasakan nya $\:D/$

Post by **justinus** » 29 Jan 2008, 16:37

Udah abis berapa payung?

Post by **oyon** » 29 Jan 2008, 17:04

Ini baru namanya kreatif ...... mantap pak. Selamat !
